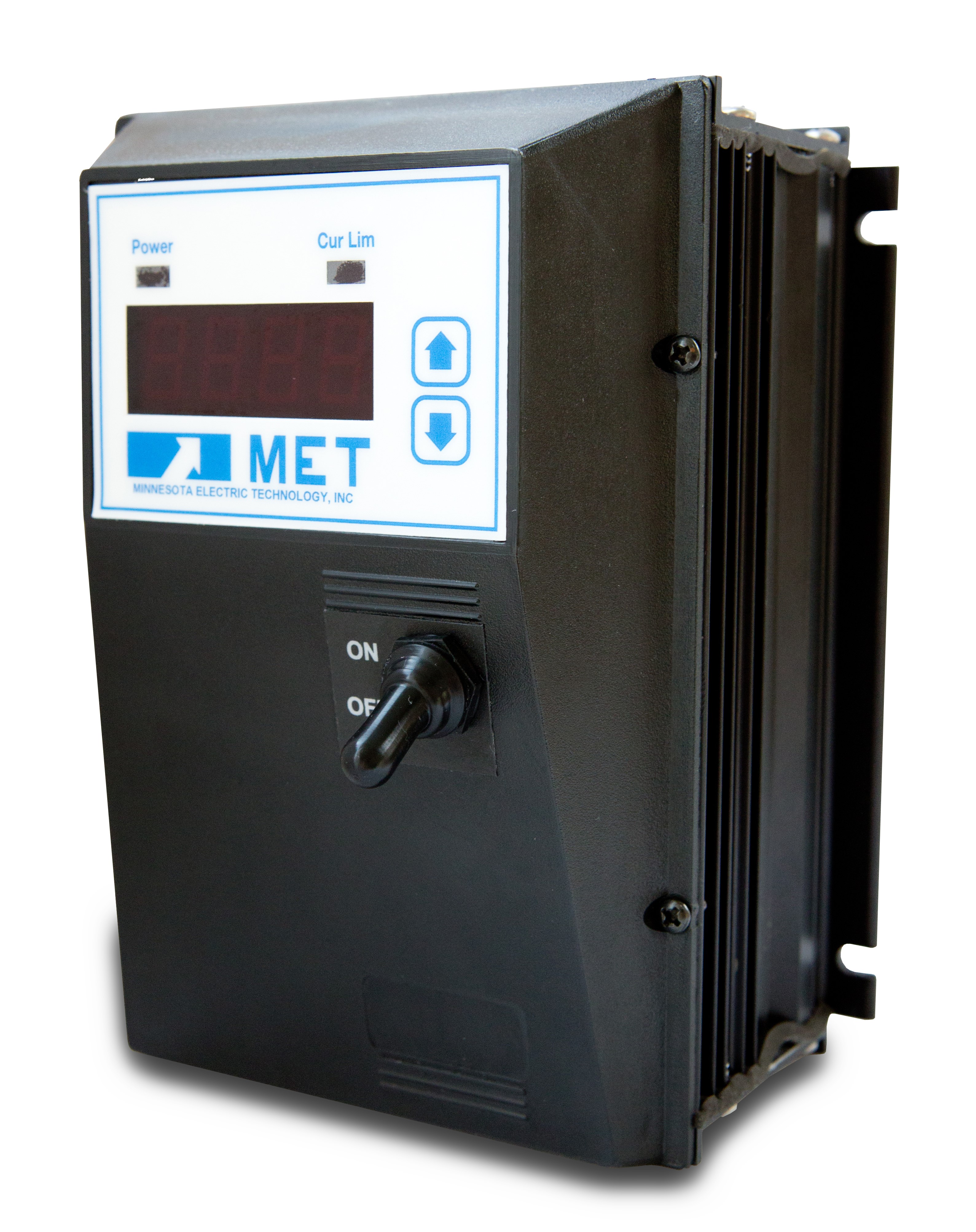

Digital DC Drives
– 12-48 VDC, 90/180 VDC MOTORS
– NEMA 4/12 ENCLOSURE
– DISPLAY IS IN PERCENTAGE
– REPEATABLE SPEED CONTROL
– POWER AND CURRENT LIMIT INDICTATORS
– MADE IN THE USA
Step Up to True Digital Control
MET Digital SC Drives offers the user precise and repeatable speed setting – saving time and material waste. When paired with MET motors, the combination offers the user the ultimate in control.
| Feature | 326-12000-24 | 326-12000-90 |
|---|---|---|
| Supply Voltage | 12/48 VDC | 120/240 VAC |
| Motor Votltage | 12/48 VDC | 90/180 VDC |
| MIN / MAX Speed Adjust | X | X |
| ACCEL Speed Adjust | X | X |
| Speed Regulate (IR Comp) | X | X |
| Continuous Current | 10A | 10A |
| Enclosure Rating | NEMA 4 | NEMA 4 |
| Last Speed Power UP | X | X |
| Zero Speed Power UP | X | X |
| Ambient Temperature | -10 to 60 Deg C | -10 to 25 Deg C |
| Wiring Termination | Terminal Strip | Terminal Strip |
| Display (Output) Units | 0.0 – 100.0 % | 0.0 – 100.0 % |
| Drawing Download | 326-12000-24 | 326-12000-90 |
